Laser-Lok Model SC-100 SIght
The Laser-Lok sight is the most advanced sighting device in the history of hand-held weaponry. The helium-neon gas laser emits an intense straight beam of invisible light that causes a highly visible red dor to appear on the target. Where the red dot appears, the bullet will strike! Forget about "sight picture"-- just put the laser dot where you want the bullets to go. Fire one-handed, from the hip, overhead... all you have to see is the Laser-Lok dot to be dead-on target. This device allows extreme accuracy at night or in dim light situations.
Law enforcement officers who have used the Laser-Lok report that the red dot is a strong deterrent when the adversary sees it on his body. Armed adversaries have immediately dropped their weapons and surrendered when then red dot indicated the imminence of an on target hit.
The unit is sealed and protected from rain and humidity. The rechargeable heavy-duty battery provides approximately two hours of continuous burn time.
| SPECIFICATIONS | MODEL SC 100 |
|---|---|
| Dimensions | 13 3/4" x 4 1/2" 1 3/4" |
| Weight | 4 1/2 lbs. |
| Power Source | Self-contained battery. Operates or recharges on 220 volt, 110 volt or 12 volt automotive systems equipped with alternator. |
| Recharging Power Supply | Laser is supplied with two cords for charging from any current. |
| Operating Time | 2 hours per charge (internal charge) or indefinite if connected to alternate power source. |
| Recharging Requirements | 8 hours for full charge. |
| Shelf Life of Battery Charge | 50% after 6 months at 70 degrees F. |

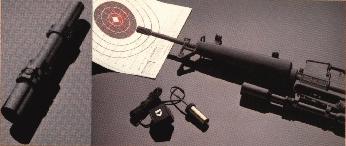

| SPECIFICATIONS | MODEL SD 300 | MODEL ST 500 |
|---|---|---|
| Length | 10" (24.4cm) | 14" (35.6cm) |
| Diameter | 1" (2.54cm) | 1" (2.54cm) |
| Battery Diameter | - - - | 1 5/8" (4.2cm) |
| Lense Diameter | 1 5/16" (3.3cm) | - - - |
| Weight | 9 oz. (255 gr.) | 11 oz. (312 gr.) |
| Weight with Battery Charger | 1 lb. 10z. (482 gr.) | 1 lb. 2 oz. (521 gr.) |
| Beam Divergence | 1 millidram | 1.2 millidram |
| Beam Divergence @ 100 Meters | 4" (10cm) | 4" (10cm) |
| Beam Diamter @ Lense | 0.8" (20mm) | 0.030" (0.8mm) |
| Visibility | Visible with night vision equipment | Visible in subdued lighting conditions |
| Operating Time on One Charge | Three (3) Hours | Approximately 20 Minutes |
| Re-Charge Time | 12 to 14 Hours | 8 to 12 Hours |
| Mounting System | Standard 1" Scope Mounts | Standard 1" SCope Mounts |
Page 6 of 6
